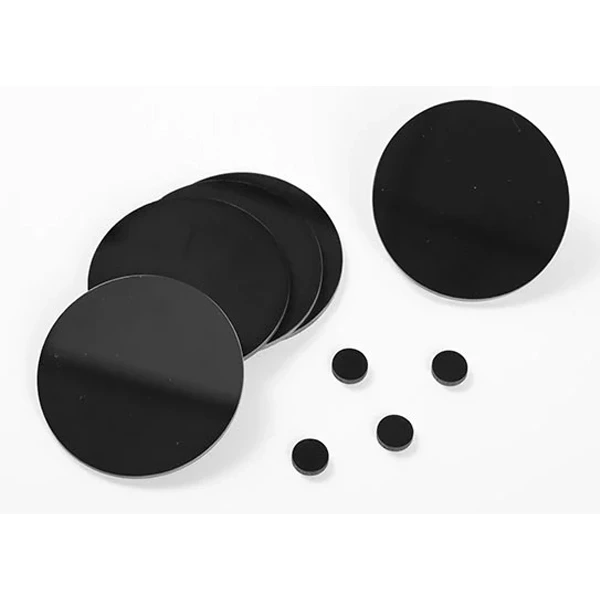

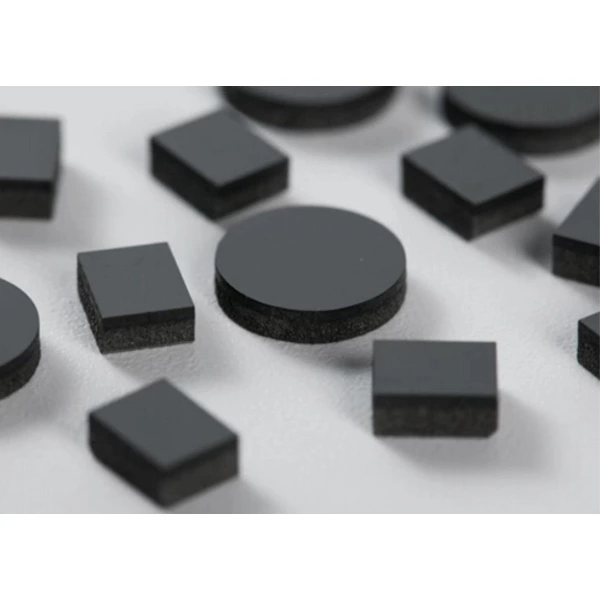

Polycrystalline Diamond (PCD) tools from GARY CARBIDE offer unmatched hardness and wear resistance, ideal for high-precision cutting and machining of non-ferrous materials. Our PCD products deliver superior edge retention and longevity, making them a cost-effective choice for industries requiring ultra-durable cutting tools. From aerospace to automotive, GARY CARBIDE’s PCD solutions are designed for high performance and reliability.
PCD
| Grade | Outside Diameter (mm) | Total Thickness (±0.05mm) | Thickness of Diamond Layer (mm) | Industry | Main Application | |||||||||
| 0.8 | 1 | 1.2 | 1.4 | 1.6 | 2 | 3.2 | 4 | 5 | 8 | |||||
| C850 | 55 | √ | √ | √ | √ | √ | 0.2~0.45 | Metalworking | 3c | |||||
| √ | √ | √ | √ | 0.4~0.65 | ||||||||||
| C02A | 55 | √ | √ | √ | √ | √ | 0.2~0.45 | Metalworking | 3c | |||||
| √ | √ | √ | √ | 0.4~0.65 | ||||||||||
| CM05 | 55 | √ | √ | √ | √ | √ | √ | √ | 0.4~0.65 |
Metalworking & Woodworking |
3C, Chipboard, Melamine decorative laminate |
|||
| √ | √ | √ | 0.4~0.75 | |||||||||||
| C10F | 55 | √ | √ | √ | 0.2~0.45 |
Metalworking & Woodworking |
Aluminum for engine | |||||||
| √ | √ | √ | √ | √ | √ | √ | 0.4~0.65 | |||||||
| √ | √ | √ | √ | √ | 0.4~0.75 | |||||||||
| √ | √ | √ | √ | 0.8~1.1 | ||||||||||
| C10H | 55 | √ | √ | √ | √ | √ | √ | √ | 0.4~0.65 |
Metalworking & Woodworking |
Graphite, Carbon Fiber, Wood, Plasterboard, MDF | |||
| √ | √ | √ | √ | √ | 0.4~0.75 | |||||||||
| √ | √ | √ | √ | 0.8~1.1 | ||||||||||
| C025A | 55 | √ | √ | √ | √ | √ | √ | √ | 0.4~0.65 |
Metalworking & Woodworking |
Aluminum profile for door and windows | |||
| √ | √ | √ | √ | √ | 0.4~0.75 | |||||||||
| C302A | 55 | √ | √ | √ | √ | √ | √ | √ | 0.4~0.65 |
Stoneoworking & Woodworking |
Stone, Concrete, Graphite Better electrical conductivity |
|||
| √ | √ | √ | 0.4~0.75 | |||||||||||
| √ | √ | √ | √ | 0.8~1.1 | ||||||||||
| C35G | 55 | √ | √ | √ | √ | √ | √ | √ | 0.4~0.65 |
Stoneoworking & Woodworking |
Stone, Concrete, Graphite Better wear resistance |
|||
