Engineered for excellence, our blanks are crafted from premium materials to ensure unparalleled durability and accuracy. Whether you’re tackling the toughest materials or aiming for the finest finishes, GARY CARBIDE's Special Milling Cutter Blanks deliver consistent, superior results every time. Elevate your machining capabilities and experience the difference that precision engineering can make. Choose GARY CARBIDE – your partner in cutting-edge innovation and reliability. Transform your tools, transform your work.
Milling cutter blanks with axial coolant duct and lateral exits/Y exits allows excellent performance on chip removal and cooling of the cutting edge.

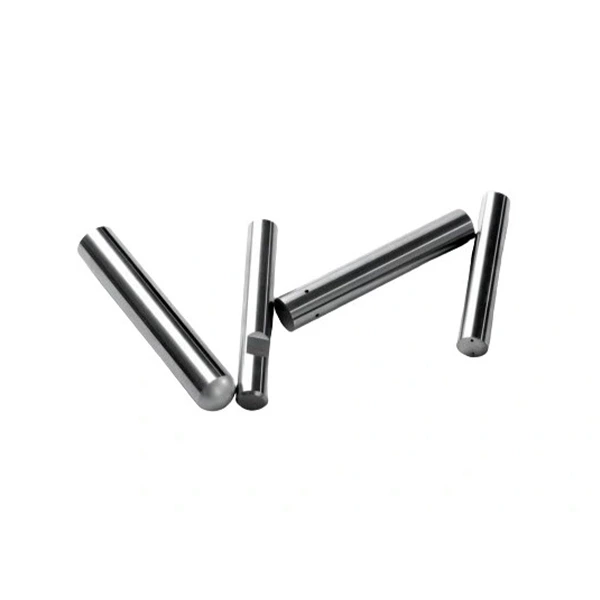

Precision ground rods with ballnose and weldon shank are available.
Rods with Axial Coolant Duct and Exit

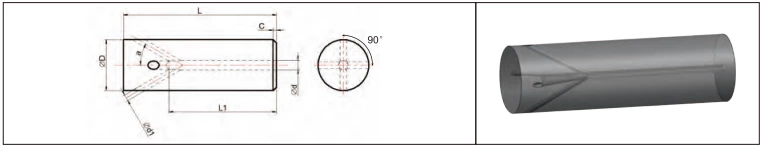

Type: RFM02
Metric Sizes: 6mm to 25mm Diameter h6 tolerance
| Item No. | D h6 | L | d | L2 | d1 | C | L1 |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| RFM02-0600-0582-PG-A1.20-E0.80 | 6 | 58.2 | 1.2 | 55 | 0.8 | 0.6 | 54.6 |
| RFM02-0800-0642-PG-A1.60-E1.10 | 8 | 64.2 | 1.6 | 60 | 1.1 | 0.6 | 59.1 |
| RFM02-1000-0732-PG-A2.00-E1.40 | 10 | 73.2 | 2 | 68 | 1.4 | 0.6 | 66.6 |
| RFM02-1200-0842-PG-A2.20-E1.60 | 12 | 84.2 | 2.2 | 78 | 1.6 | 0.8 | 76.1 |
| RFM02-1400-0842-PG-A2.40-E1.70 | 14 | 84.2 | 2.4 | 77 | 1.7 | 0.8 | 74.7 |
| RFM02-1600-0932-PG-A2.60-E1.90 | 16 | 93.2 | 2.6 | 85 | 1.9 | 0.8 | 82.2 |
| RFM02-1800-0932-PG-A2.80-E2.00 | 18 | 93.2 | 2.8 | 84 | 2 | 1 | 80.7 |
| RFM02-2000-1052-PG-A3.00-E2.10 | 20 | 105.2 | 3 | 95 | 2.1 | 1 | 91.2 |
| RFM02-2500-1252-PG-A3.20-E2.30 | 25 | 125.2 | 3.2 | 112.5 | 2.3 | 1.5 | 107.5 |

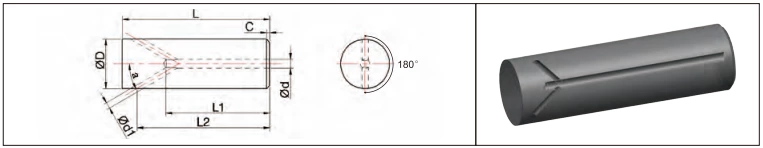

Type: RFM03
Metric Sizes: 6mm to 25mm Diameter h6 tolerance
| Item No. | D h6 | L | d | L2 | d1 | C | L1 |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| RFM03-0600-0582-PG-A1.20-E0.70 | 6 | 58.2 | 1.2 | 55 | 0.7 | 0.6 | 54.6 |
| RFM03-0800-0642-PG-A1.60-E0.90 | 8 | 64.2 | 1.6 | 60 | 0.9 | 0.6 | 59.1 |
| RFM03-1000-0732-PG-A2.00-E1.20 | 10 | 73.2 | 2 | 68 | 1.2 | 0.6 | 66.6 |
| RFM03-1200-0842-PG-A2.20-E1.30 | 12 | 84.2 | 2.2 | 78 | 1.3 | 0.8 | 76.1 |
| RFM03-1400-0842-PG-A2.40-E1.40 | 14 | 84.2 | 2.4 | 77 | 1.4 | 0.8 | 74.7 |
| RFM03-1600-0932-PG-A2.60-E1.50 | 16 | 93.2 | 2.6 | 85 | 1.5 | 0.8 | 82.2 |
| RFM03-1800-0932-PG-A2.80-E1.60 | 18 | 93.2 | 2.8 | 84 | 1.6 | 1 | 80.7 |
| RFM03-2000-1052-PG-A3.00-E1.70 | 20 | 105.2 | 3 | 95 | 1.7 | 1 | 91.2 |
| RFM03-2500-1252-PG-A3.20-E1.80 | 25 | 125.2 | 3.2 | 1125 | 1.8 | 1.5 | 1075 |

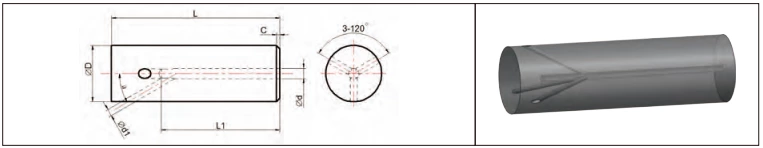

Type: RFM04
Metric Sizes 6mm to 25mm Diameter h6 tolerance
| Item No. | D h6 | L | d | L2 | d1 | C | L1 |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| RFM04-0600-0582-PG-A1.20-E0.60 | 6.0 | 58.2 | 1.20 | 55.0 | 0.60 | 0.6 | 54.6 |
| RFM04-0800-0642-PG-A1.60-E0.80 | 8.0 | 64.2 | 1.60 | 60.0 | 0.80 | 0.6 | 59.1 |
| RFM04-1000-0732-PG-A2.00-E1.00 | 10.0 | 73.2 | 2.00 | 68.0 | 1.00 | 0.6 | 66.6 |
| RFM04-1200-0842-PG-A2.20-E1.10 | 12.0 | 84.2 | 2.20 | 78.0 | 1.10 | 0.8 | 76.1 |
| RFM04-1400-0842-PG-A2.40-E1.20 | 14.0 | 84.2 | 2.40 | 77.0 | 1.20 | 0.8 | 74.7 |
| RFM04-1600-0932-PG-A2.60-E1.30 | 16.0 | 93.2 | 2.60 | 85.0 | 1.30 | 0.8 | 82.2 |
| RFM04-1800-0932-PG-A2.80-E1.40 | 18.0 | 93.2 | 2.80 | 84.0 | 1.40 | 1.0 | 80.7 |
| RFM04-2000-1052-PG-A3.00-E1.50 | 20.0 | 105.2 | 3.00 | 95.0 | 1.50 | 1.0 | 91.2 |
| RFM04-2500-1252-PG-A3.20-E1.60 | 25.0 | 125.2 | 3.20 | 112.5 | 1.60 | 1.5 | 107.5 |
