HMS: Heavy Alloy Modular Shanks
Features:
Screw-in, through coolant, Exellent toughness, more fogiving with reduced fracture rates. Ant-rioretion.
Applications:
ldeal for Roughing and Semi-finishing applications, and for use in lower speed machining. Adopted to lSO modular heads.
CMS: Carbide Modular Shanks
Features:
Screw-in, through coolant, Excellent rigidity, and ant-vibration.
Applications:
ldeal for semi-finishing and finishing applications, and High Speed machining. Adopted to lSO modular heads.

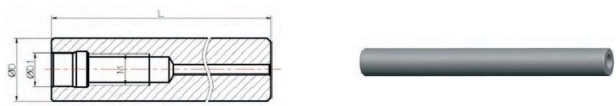

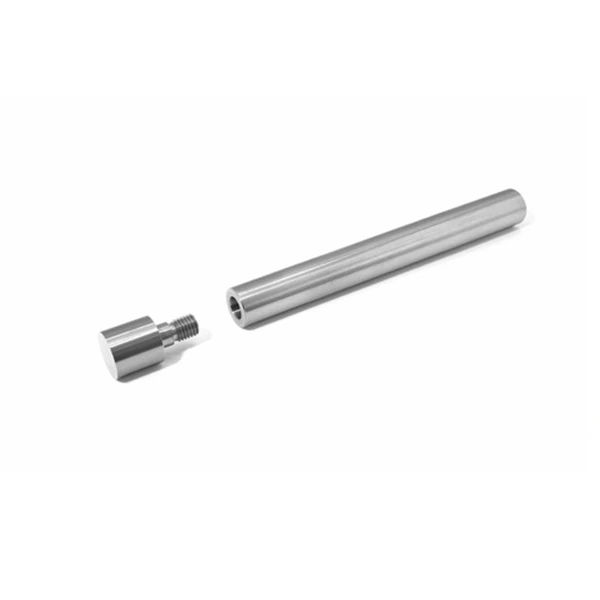

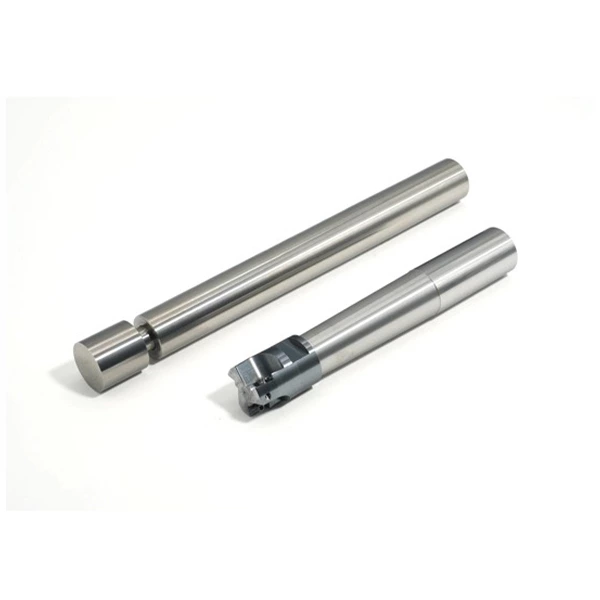

High Precision Carbide Modular Shanks
Type: CMS
Straight Shank
Type: CMSA
Shank with Straight Neck
Type: CMSB
Shank with Taper Neck
Shanks (Metric)
| Item No. | D h6 | L | D1 h6 | M | |
| (mm) | (mm) | mm) | |||
| HMS 10L100-M6 | CMS 10L100-M6 | 10 | 100 | 6.5 | M6 |
| HMS 10L150-M6 | CMS 10L150-M6 | 10 | 150 | 6.5 | M6 |
| HMS 12L100-M6 | CMS 12L100-M6 | 12 | 100 | 6.5 | M6 |
| HMS 12L150-M6 | CMS 12L150-M6 | 12 | 150 | 6.5 | M6 |
| HMS 16L100-M8 | CMS 16L100-M8 | 16 | 100 | 3.5 | M8 |
| HMS 16L150-M8 | CMS 16L150-M8 | 16 | 150 | 8.5 | M8 |
| HMS 16L200-M8 | CMS 16L200-M8 | 16 | 200 | 8.5 | M8 |
| HMS 16L250-M8 | CMS 16L250-M8 | 16 | 250 | 8.5 | M8 |
| HMS 20L100-M10 | CMS 20L100-M10 | 20 | 100 | 10.5 | M10 |
| HMS 20L150-M10 | CMS 20L150-M10 | 20 | 150 | 10.5 | M10 |
| HMS 20L200-M10 | CMS 20L200-M10 | 20 | 200 | 10.5 | M10 |
| HMS 20L250-M10 | CMS 20L250-M10 | 20 | 250 | 10.5 | M10 |
| HMS 20L300-M10 | CMS 20L300-M10 | 20 | 300 | 10.5 | M10 |
| HMS 25L150-M12 | CMS 25L150-M12 | 25 | 150 | 12.5 | M12 |
| HMS 25L200-M12 | CMS 25L200-M12 | 25 | 200 | 12.5 | M12 |
| HMS 25L250-M12 | CMS 25L250-M12 | 25 | 250 | 12.5 | M12 |
| HMS 25L300-M12 | CMS 25L300-M12 | 25 | 300 | 12.5 | M12 |
| HMS 32L150-M16 | CMS 32L150-M16 | 32 | 150 | 16.5 | M16 |
| HMS 32L200-M16 | CMS 32L200-M16 | 32 | 200 | 16.5 | M16 |
| HMS 32L250-M16 | CMS 32L250-M16 | 32 | 250 | 16.5 | M16 |
| HMS 32L300-M16 | CMS 32L300-M16 | 32 | 300 | 16.5 | M16 |
| HMS 32L400-M16 | CMS 32L400-M16 | 32 | 400 | 16.5 | M16 |
Shanks (Inch)
| Item Code | 0Dh6 | M | |
| (inch) | (inch) | ||
| CMS 03750L03937-M6 | 0.3750 | 3.937 | M6 |
| CMS 03750L05906-M6 | 0.3750 | 5.906 | M6 |
| CMS 05000L03937-M6 | 0.5000 | 3.937 | M6 |
| CMS 05000L05906-M6 | 0.5000 | 5.906 | M6 |
| CMS 06250L03937-M8 | 0.6250 | 3.937 | M8 |
| CMS 06250L05906-M8 | 0.6250 | 5.906 | M8 |
| CMS 06250L07874-M8 | 0.6250 | 7.874 | M8 |
| CMS 06250L09843-M8 | 0.6250 | 9.843 | M8 |
| CMS 07500L03937-M10 | 0.7500 | 3.937 | M10 |
| CMS 07500L05906-M10 | 0.7500 | 5.906 | M10 |
| CMS 07500L07874-M10 | 0.7500 | 7.874 | M10 |
| CMS 07500L09843-M10 | 0.7500 | 9.843 | M10 |
| CMS 07500L11811-M10 | 0.7500 | 11.811 | M10 |
| CMS 10000L05906-M12 | 1.0000 | 5.906 | M12 |
| CMS 10000L07874-M12 | 1.0000 | 7.874 | M12 |
| CMS 10000L09843-M12 | 1.0000 | 9.843 | M12 |
| CMS 10000L11811-M12 | 1.0000 | 11.811 | M12 |
| CMS 12500L05906-M16 | 1.2500 | 5.906 | M16 |
| CMS 12500L07874-M16 | 1.2500 | 7.874 | M16 |
| CMS 12500L09843-M16 | 1.2500 | 9.843 | M16 |
| CMS 12500L11811-M16 | 1.2500 | 11.811 | M16 |
| CMS 12500L13780-M16 | 1.2500 | 13.780 | M16 |
| CMS 12500L15748-M16 | 1.2500 | 15.748 | M16 |
