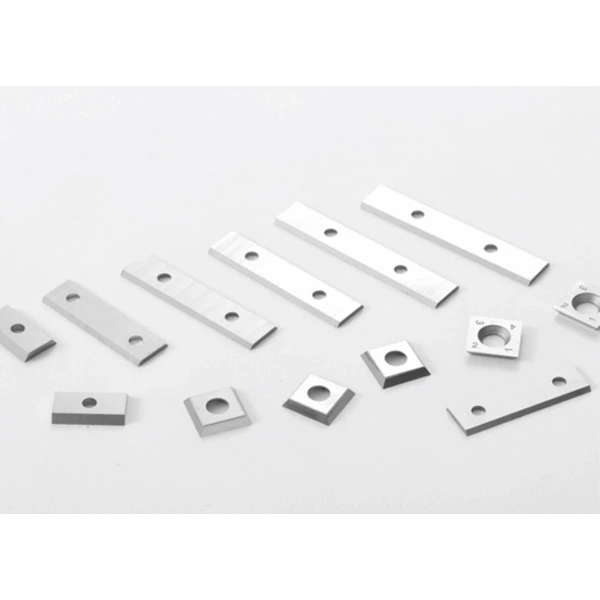

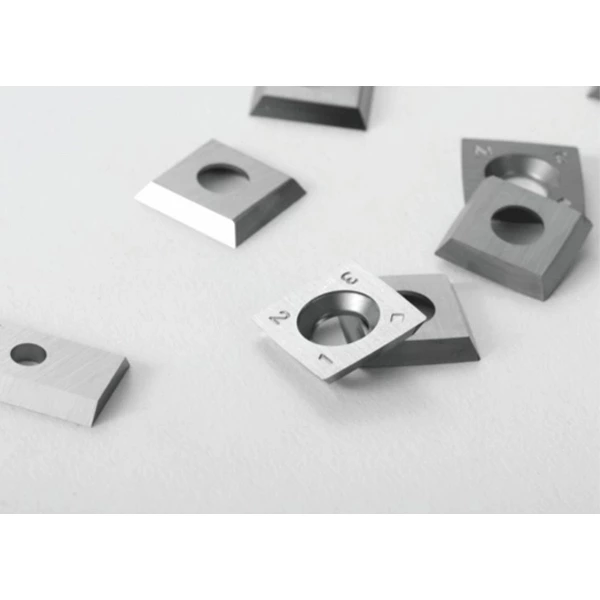

Our indexable knives are designed for versatility and precision in cutting applications. These knives can be easily rotated or replaced, ensuring consistent cutting performance and reduced downtime. GARY CARBIDE’s indexable knives are made from high-grade carbide materials, offering superior wear resistance and extended tool life in woodworking, metalworking, and other industries.
Indexable Knives
| Grades | Binder % | Grain Size | Density | Hardness | T.R.S | KIC | USA Code | ISO Code | |
| g/cm3 | HRA | HV10 | N/mm2 | Mpa.m1/2 | |||||
| UH5 | 3.0 | Ultrafine | 15.15 | 94.3 | 2120 | 2600 | 6.9 | C4 | K01 |
| MH6 | 5.0 | Submicro | 14.95 | 93.6 | 1950 | 2800 | 8.5 | C3 | K10 |
| MH10F | 10.0 | Submicro | 14.5 | 91.8 | 1600 | 3800 | 11 | C2 | K30 |
| L | W | T | R |
| mm | mm | mm | mm |
| 14.0 | 14.0 | 2.0 | / |
| 15.0 | 15.0 | 2.5 | / |
| 15.0 | 15.0 | 2.5 | 115 |
| 15.0 | 15.0 | 2.5 | 150 |
| L | W | T | B |
| mm | mm | mm | mm |
| 20.0 | 12.0 | 1.5 | / |
| 30.0 | 12.0 | 1.5 | 14.0 |
| 40.0 | 12.0 | 1.5 | 26.0 |
| 50.0 | 12.0 | 1.5 | 26.0 |
