GARY CARBIDE's finger joint router bits are expertly crafted for high-precision woodworking applications. These bits deliver clean, accurate cuts for creating strong, reliable finger joints in various wood materials. Engineered for durability and performance, our carbide bits ensure extended tool life and superior results in industrial woodworking.

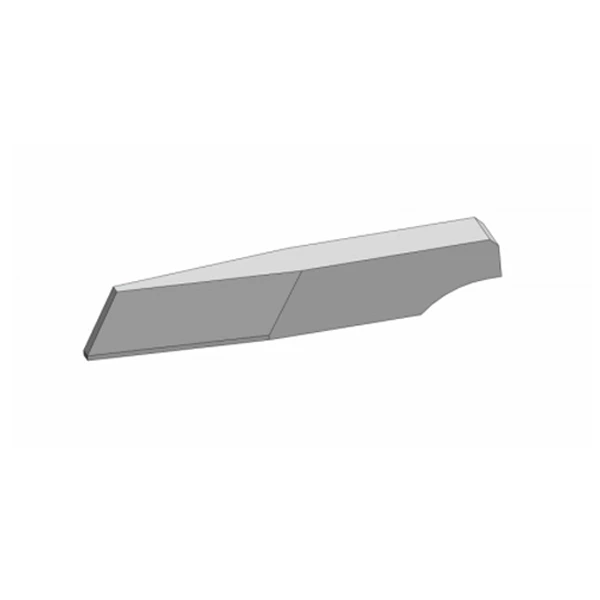

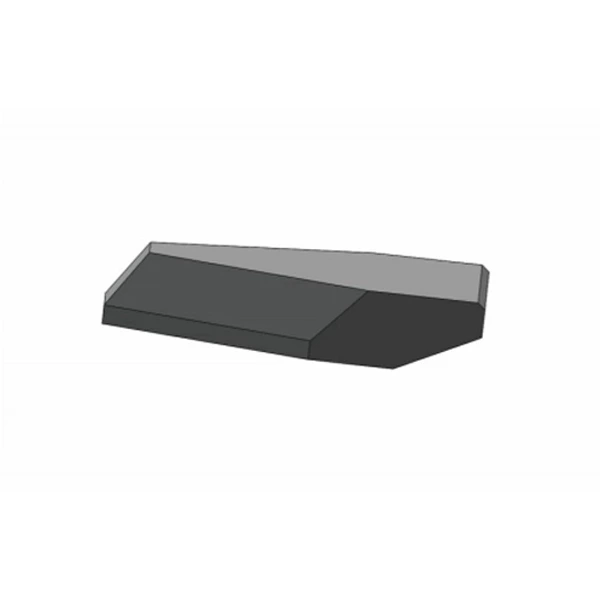

Finger Joint Tips
| Grades | Binder % | Grain Size | Density | Hardness | T.R.S | KIC | USA Code | ISO Code | |
| g/cm3 | HRA | HV10 | N/mm2 | Mpa.m1/2 | |||||
| CK10 | 6 | Mediumfine | 14.9 | 91.3 | 1530 | 2100 | 11.8 | C3 | K10 |
| CK20 | 8 | Mediumfine | 14.7 | 90.2 | 1390 | 2500 | 14 | C2 | K20 |
| MH7 | 6 | Submicro | 14.85 | 93.1 | 1840 | 3600 | 8.5 | C3 | K10 |
| MH10F | 10 | Submicro | 14.45 | 91.8 | 1600 | 3800 | 11 | C2 | K30 |

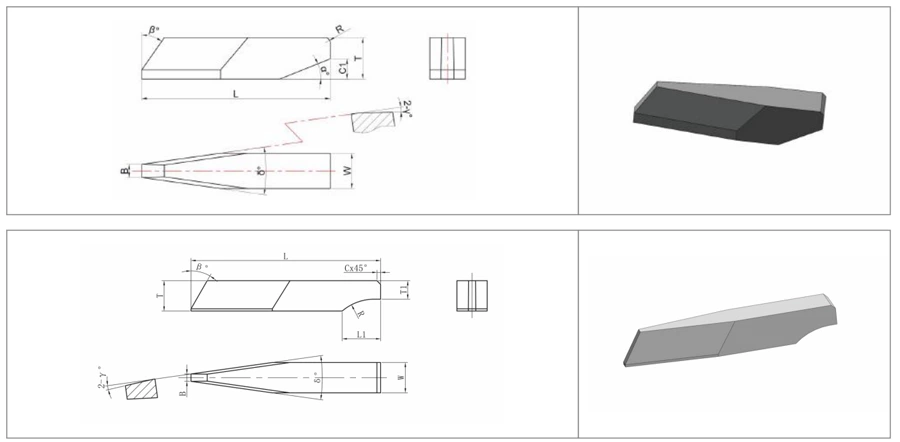

| Type | L | W | T | β° | α° | γ° |
| mm | mm | mm | ||||
| FJ12.8X2.1X3.7 | 12.8 | 2.1 | 3.7 | 60° | 60° | 0° |
| FJ14.6X3.4X4.3 | 14.6 | 3.4 | 4.3 | 60° | 60° | 5° |
| FJ18.2X9.8X4.0 | 18.2 | 9.8 | 4 | 60° | 45° | 5° |
| FJ18.3X10X4.0 | 18.3 | 10 | 4 | 60° | 45° | 5° |
| FJ18.5X5.4X4 | 18.5 | 5.4 | 4 | 60° | 0° | 6° |
| FJ18.5X10X4 | 18.5 | 10 | 4 | 60° | 45° | 5° |
| FJ18.7X3.2X4.1 | 18.7 | 3.2 | 4.1 | 55° | 68° | 6.2° |
| FJ18.7X8.4X4.1 | 18.7 | 8.4 | 4.1 | 55° | 70° | 7.7° |
| FJ18.7X10.3X3.6 | 18.7 | 10.3 | 3.6 | 65° | 67° | 7° |
| FJ18.7X15.3X3.6 | 18.7 | 15.3 | 3.6 | 45° | 67° | 7° |
| FJ19.8X4X4.2 | 19.8 | 4 | 4.2 | 60° | 60° | 5° |
| FJ20.7X3.6X4.3 | 20.7 | 3.6 | 4.3 | 60° | 65° | 5° |
| FJ21X3.6X4.7 | 21 | 3.6 | 4.7 | 60° | 45° | 5° |
| FJ22.5X4X4. | 22.5 | 4.2 | 4 | 45° | 63° | 0° |
| 2FJ23X3.7X3.8 | 23 | 3.7 | 3.8 | 45° | 63° | 5° |
| FJ23X3.8X4 | 23 | 3.8 | 4 | 45° | 63° | 5° |
| FJ23X6.1X4.4 | 23 | 6.1 | 4.4 | 60° | 45° | 5° |
| FJ23.2X4.1X4.1 | 23.2 | 4.1 | 4.1 | 45° | 70° | 8° |
| FJ23.2X8.4X4.1 | 23.2 | 8.4 | 4.1 | 50° | 68° | 8.4° |
| FJ23.2X10.4X4.1 | 23.2 | 10.4 | 4.1 | 45° | 68° | 7° |
| FJ23.4X4X4.2 | 23.4 | 4 | 4.2 | 60° | 60° | 5° |
| FJ23.5X4.5X4.0 | 23.5 | 4.5 | 4 | 65° | 60° | 0° |
| FJ23.8X4X4.2 | 23.8 | 4 | 4.2 | 60° | 60° | 3° |
| FJ24X4.5X4.4 | 24 | 4.5 | 4.4 | 60° | 40° | 0° |
| FJ24X10X4 | 24 | 10 | 4 | 50° | 70° | 5° |
| FJ25X4.5X4.4 | 25 | 4.5 | 4.4 | 65° | 25° | 0° |
| FJ25X5.3X4.2 | 25 | 5.3 | 4.2 | 64° | 45° | 5° |
| FJ26X5.8X4.2 | 26 | 5.8 | 4.2 | 60° | 45° | 5° |
| FJ26X10.2X4 | 26 | 10.2 | 4 | 60° | 45° | 5° |
| FJ26.3X4X4.2 | 26.3 | 4 | 4.2 | 60° | 60° | 5° |
| FJ26.5X3.8X4 | 26.5 | 3.8 | 4 | 45° | 70° | 5° |
| FJ26.5X7.1X4.0 | 26.5 | 7.1 | 4 | 60° | 0° | 7° |
| FJ27.2X4.1X4.1 | 27.2 | 4.1 | 4.1 | 60° | 70° | 8° |
| FJ27.2X10.4X3.8 | 27.2 | 10.4 | 3.8 | 45° | 71° | 7° |
| FJ27.6X7X4.2 | 27.6 | 7 | 4.2 | 64° | 45° | 3° |
| FJ28X4.2X4.0 | 28 | 4.2 | 4 | 64° | 68° | 7° |
| FJ28X4.5X4.1 | 28 | 4.5 | 4.1 | 65° | 65° | 7° |
| FJ28X5X4 | 28 | 5 | 4 | 64° | 68° | 7° |
| FJ28X5.2X4.4 | 28 | 5.2 | 4.4 | 52° | 52° | 0° |
| FJ28X6.3X4.1 | 28 | 6.3 | 4.1 | 45° | 63° | 7° |
| FJ28X10.8X4.1 | 28 | 10.8 | 4.1 | 45° | 63° | 7° |
| FJ28.2X5.55X4.4 | 28.2 | 5.55 | 4.4 | 75° | 50° | 0° |
| FJ28.3X4.5X4.3 | 28.3 | 4.5 | 4.3 | 65° | 65° | 10° |
| FJ28.5X4.3X4.1 | 28.5 | 4.3 | 4.1 | 45° | 45° | 7° |
| FJ30X11.6X4.2 | 30 | 11.6 | 4.2 | 90° | 45° | 5° |
| FJ31X6.4X4.3 | 31 | 6.4 | 4.3 | 60° | 45° | 5° |
| FJ32X6.1X4.3 | 32 | 6.1 | 4.3 | 60° | 45° | 5° |
| FJ33X7X4.3 | 33 | 7 | 4.3 | 60° | 45° | 5° |
| FJ41.5X14.5X4.5 | 41.5 | 4.5 | 14.5 | 45° | 45° | 9° |
| FJ45X9.1X4.5 | 45 | 9.1 | 4.5 | 60° | 45° | 5° |
