Our carbide blanks for router cutters are built to provide exceptional performance in woodworking and other material cutting applications. With high wear resistance and precise dimensional accuracy, these blanks are perfect for producing high-quality router cutters that deliver clean and efficient cuts in various materials.

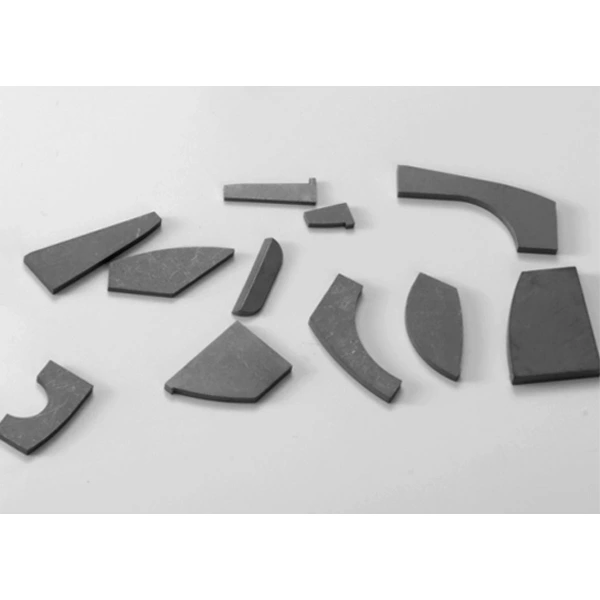

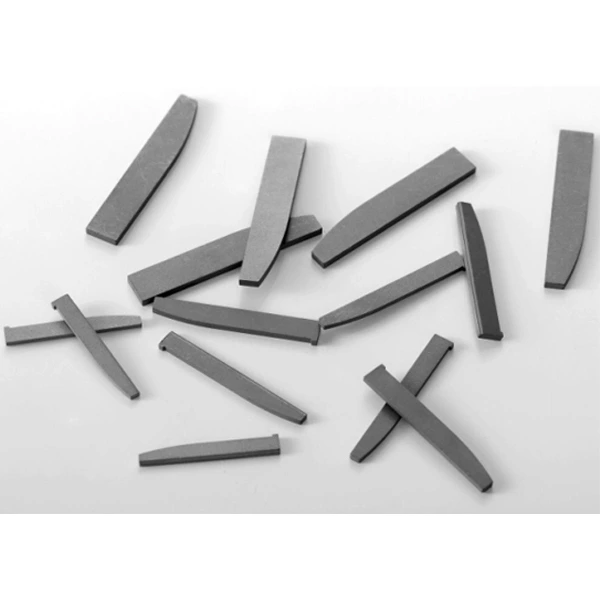

Blanks for Router Cutters
| Grades | Binder % | Grain Size | Density | Hardness | T.R.S | KIC | USA Code | ISO Code | |
| g/cm3 | HRA | HV10 | N/mm2 | Mpa.m1/2 | |||||
| UH5 | 3.0 | Ultrafine | 15.15 | 94.3 | 2120 | 2600 | 6.9 | C4 | K01 |
| MH3 | 3.3 | Ultrafine | 15.1 | 94.6 | 2175 | 2400 | 6.9 | C4 | K01 |
| MH5 | 4.8 | Sub-micron | 14.95 | 94.1 | 2070 | 2400 | 7.4 | C4 | K05 |
| MH6 | 5.0 | Sub-micron | 14.95 | 93.6 | 1950 | 2800 | 8.5 | C3 | K10 |
| CK10X | 6.0 | Mediumfine | 14.9 | 91.3 | 1530 | 2100 | 11.8 | C3 | K10 |
| CK20 | 8.0 | Mediumfine | 14.7 | 90.2 | 1390 | 2500 | 14 | C2 | K20 |
| Grade | Chipboard | MDF&HDF | Solid Wood | Soft Wood |
| UH5 | ★★★★ | ★★★★ | ||
| MH3 | ★★★★ | ★★★★ | ||
| MH5 | ★★★ | ★★★ | ||
| MH6 | ★★★ | ★★ | ★★★★ | |
| CF10 | ★★★ | ★★★★ | ||
| CK10 | ★★ | ★★★ |
★Moderate
★★OK
★★★Very good
★★★★Excellent

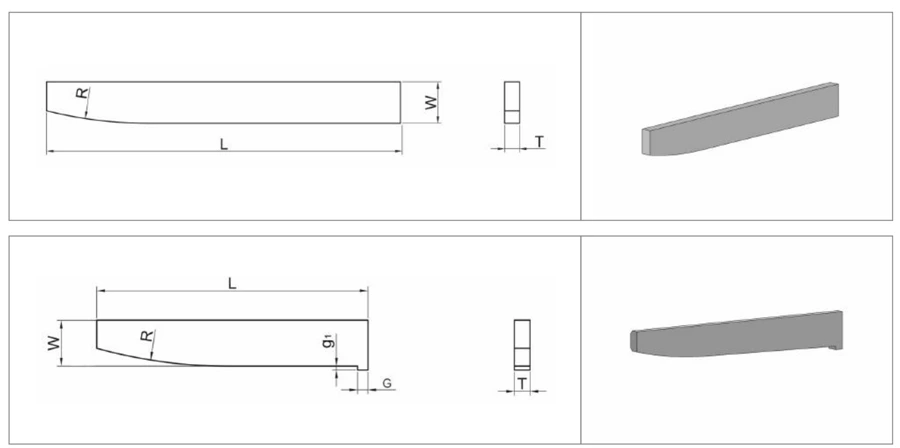

| Type | L | W | R |
| mm | mm | mm | |
| TX2.1X20.2-R32 | 20.2 | 2.1 | 32.0 |
| TX2.5X20.3-R32 | 20.3 | 2.5 | 32.0 |
| TX3.0X20.5-R32 | 20.5 | 3.0 | 32.0 |
| TX3.3X25-R32 | 25.0 | 3.3 | 32.0 |
| TX3.0X30-R37.5 | 30.0 | 3.0 | 37.5 |
| TX3.0X30.5-R32 | 30.5 | 3.0 | 32.0 |
| TX4.0X30.5-R31.5 | 30.5 | 4.0 | 31.5 |
| TX5.3X30.5-R31.5 | 30.5 | 5.3 | 31.5 |
| TX8.0X30.5-R31.5 | 30.5 | 8.0 | 31.5 |
| TX3.35X31-R32 | 31.0 | 3.4 | 32.0 |
| TX4.0X31-R31.5 | 31.0 | 4.0 | 31.5 |
| TX4.3X31-R31.5 | 31.0 | 4.3 | 31.5 |
| TX5.0X31-R37.5 | 31.0 | 5.0 | 37.5 |
| TX5.5X31-R37.5 | 31.0 | 5.5 | 37.5 |
| TX6X31-R37.5 | 31.0 | 6.0 | 37.5 |
| TX7.0X31-R37 | 31.0 | 7.0 | 37.0 |
| TX8.0X31-R37 | 31.0 | 8.0 | 37.0 |
| TX3.5X35.5-R37.5 | 35.5 | 3.5 | 37.5 |
| TX4.3X38.1-R31.5 | 38.1 | 4.3 | 31.5 |
| TX3.4X38.2-R32 | 38.2 | 3.4 | 32.0 |
| TX3.2X38.5-R37 | 38.5 | 3.2 | 37.0 |
| TX4.0X50.8-R37.5 | 50.8 | 4.0 | 37.5 |
| TX4.2X63.5-R32 | 63.5 | 4.2 | 32.0 |
| TX4.3X76.2-R32 | 76.2 | 4.3 | 32.0 |
| Type | L | W | R | GXg1 |
| mm | mm | mm | mm | |
| TX2.7X20.8-R37.5-G | 20.8 | 2.7 | 37.5 | 0.8X0.3 |
| TX3.5X20.8-R37.5-G | 20.8 | 3.5 | 37.5 | 0.8X0.3 |
| TX3.0X21.8-R37.5-G | 21.8 | 3.0 | 37.5 | 0.8X0.3 |
| TX2.7X22.8-R37.5-G | 22.8 | 2.7 | 37.5 | 0.8X0.3 |
| TX3.0X25.8-R37.5-G | 25.8 | 3.0 | 37.5 | 0.8X0.3 |
| TX3.5X25.8-R37.5-G | 25.8 | 3.5 | 37.5 | 0.8X0.3 |
| TX3.8X26-R37.5-G | 26.0 | 3.8 | 37.5 | 1.6X0.3 |
| TX3.0X27.8-R37.5-G | 27.8 | 3.0 | 37.5 | 0.8X0.3 |
| TX3.0X30.8-R37.5-G | 30.8 | 3.0 | 37.5 | 0.8X0.3 |
| TX3.5X30.8-R37.5-G | 30.8 | 3.5 | 37.5 | 0.8X0.3 |
| TX4.5X30.8-R37.5-G | 30.8 | 4.5 | 37.5 | 0.8X0.3 |
| TX4.3X39-R37.5-G | 39.0 | 4.3 | 37.5 | 1.5X0.3 |
| TX4.3X51.5-R37.5-G | 51.5 | 4.3 | 37.5 | 1.5X0.3 |
