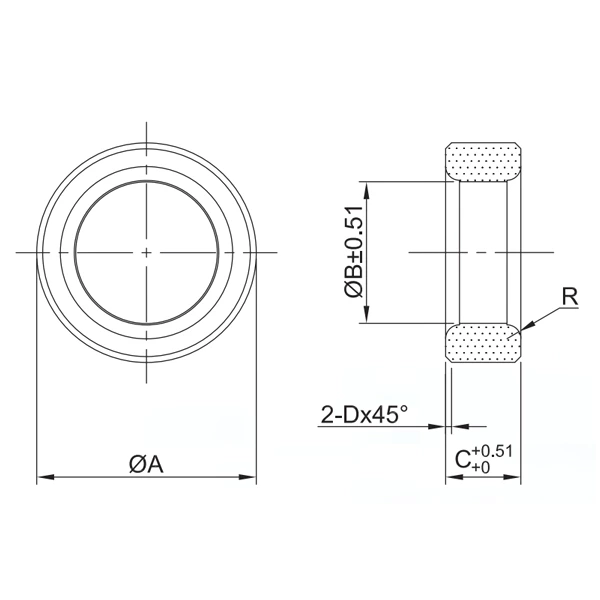

Unit: mm
| API type | Stock No. | Size | AA | B | C | D | R | |
| V11-106 | VS10201101201 | 1-1/16" | Ø20.4 | +0.5 +0 | Ø11.7 | 13.0 | 1.0 | 1.6 |
| V11-125 | VS10231301201 | 1-1/4" | Ø23.6 | +0.5 +0 | Ø14 | 13.0 | 1.0 | 1.6 |
| V11-150 | VS10291701201 | 1-1/2" | Ø29.9 | +0.5 +0 | Ø17 | 13.0 | 1.3 | 2.0 |
| V11-175 | VS10352001201 | 1-3/4" | Ø35.5 | +0.5 +0 | Ø21 | 13.0 | 1.5 | 2.4 |
| V11-200 | VS10372401201 | 2" | Ø37.8 | +0.5 +0 | Ø24.4 | 13.0 | 1.5 | 2.4 |
| V11-225 | VS10432601201 | 2-1/4" | Ø43.9 | +0.6 +0 | Ø26.9 | 13.0 | 2.0 | 2.4 |
| V11-250 | VS10513301201 | 2-3/4" | Ø51.3 | +0.6 +0 | Ø33.3 | 13.0 | 2.0 | 2.4 |
| V11-375 | VS10784701901 | 3-3/4" | Ø78.3 | +0.6 +0 | Ø47.8 | 19.3 | 2.5 | 3.2 |
