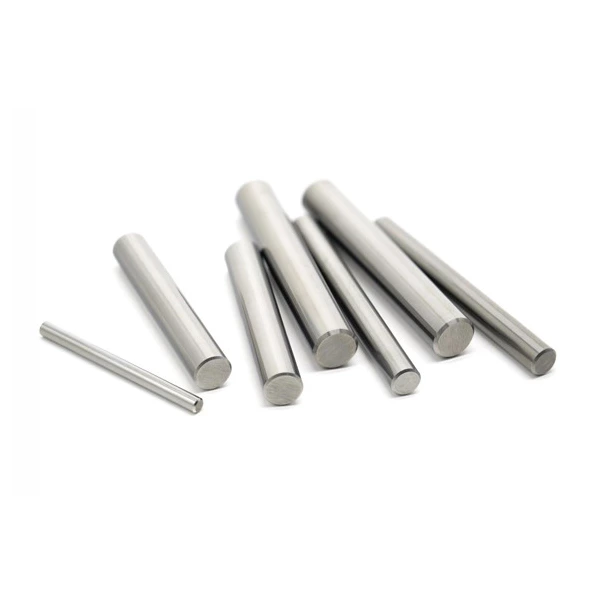

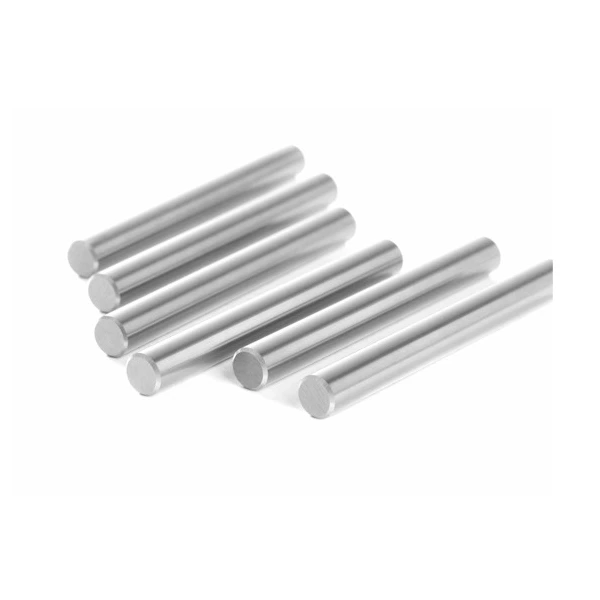

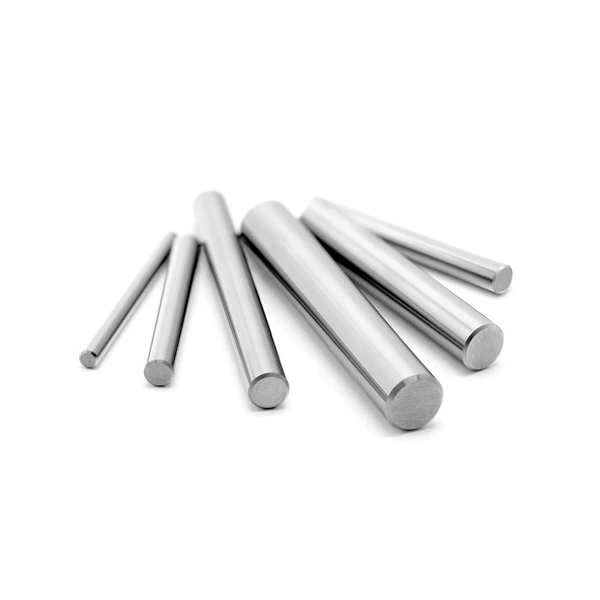

GARY CARBIDE's solid carbide rods are the ideal choice for demanding applications requiring exceptional hardness, toughness, and wear resistance. These rods are engineered for high-precision cutting tools, such as end mills, drills, and reamers, ensuring longer tool life and consistent performance. Available in a range of sizes and grades, our solid carbide rods deliver unmatched reliability in the most challenging machining environments.

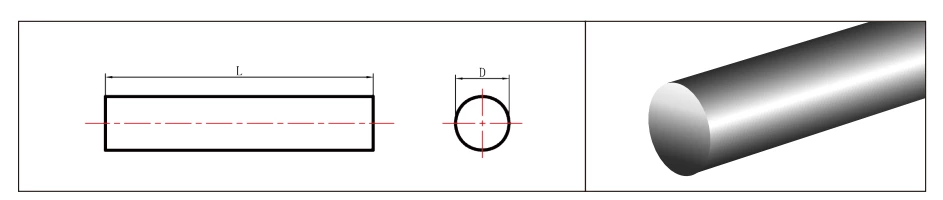

Precision Ground Rod, Random Lengths (Metric Sizes 1mm to 40mm Diameter h6 tolerance)
Type: RSM
Metric Sizes 1mm to 40mm Diameter h6 tolerance
| ltem No. | OD | Tol. h6 | L | Tol. |
| (mm) | (mm) | (mm) | (mm) | |
| RSM-0100-3300PG | 1 | 0/-0.006 | 330 | 0/+5 |
| RSM-0150-330OPG | 1.5 | 0/-0.006 | 330 | 0/+5 |
| RSM-0200-3300PG | 2 | 0/-0.006 | 330 | 0/+5 |
| RSM-0300-3300PG | 3 | 0/-0.006 | 330 | 0/+5 |
| RSM-0400-3300PG | 4 | 0/-0.008 | 330 | 0/+5 |
| RSM-0500-3300PG | 5 | 0/-0.008 | 330 | 0/+5 |
| RSM-0600-3300PG | 6 | 0/-0.008 | 330 | 0/+5 |
| RSM-0700-3300PG | 7 | 0/-0.009 | 330 | 0/+5 |
| RSM-0800-3300PG | 8 | 0/-0.009 | 330 | 0/+5 |
| RSM-0900-3300PG | 9 | 0/-0.009 | 330 | 0/+5 |
| RSM-1000-3300PG | 10 | 0/-0.009 | 330 | 0/+5 |
| RSM-1100-3300PG | 11 | 0/-0.011 | 330 | 0/+5 |
| RSM-1200-3300PG | 12 | 0/-0.011 | 330 | 0/+5 |
| RSM-1300-3300PG | 13 | 0/-0.011 | 330 | 0/+5 |
| RSM-1400-3300PG | 14 | 0/-0.011 | 330 | 0/+5 |
| RSM-1500-3300PG | 15 | 0/-0.011 | 330 | 0/+5 |
| RSM-1600-3300PG | 16 | 0/-0.011 | 330 | 0/+5 |
| RSM-1700-3300PG | 17 | 0/-0.011 | 330 | 0/+5 |
| RSM-1800-3300PG | 18 | 0/-0.011 | 330 | 0/+5 |
| RSM-1900-3300PG | 19 | 0/-0.013 | 330 | 0/+5 |
| RSM-2000-3300PG | 20 | 0/-0.013 | 330 | 0/+5 |
| RSM-2100-3300PG | 21 | 0/-0.013 | 330 | 0/+5 |
| RSM-2200-3300PG | 22 | 0/-0.013 | 330 | 0/+5 |
| RSM-2300-3300PG | 23 | 0/-0.013 | 330 | 0/+5 |
| RSM-2400-3300PG | 24 | 0/-0.013 | 330 | 0/+5 |
| RSM-2500-3300PG | 25 | 0/-0.013 | 330 | 0/+5 |
| RSM-2600-3300PG | 26 | 0/-0.013 | 330 | 0/+5 |
| RSM-2700-3300PG | 27 | 0/-0.013 | 330 | 0/+5 |
| RSM-2800-3300PG | 28 | 0/-0.013 | 330 | 0/+5 |
| RSM-2900-3300PG | 29 | 0/-0.013 | 330 | 0/+5 |
| RSM-3000-3300PG | 30 | 0/-0.013 | 330 | 0/+5 |
| RSM-3200-3300PG | 32 | 0/-0.016 | 330 | 0/+5 |
| RSM-3400-3300PG | 34 | 0/-0.016 | 330 | 0/+5 |
| RSM-3600-3300PG | 36 | 0/-0.016 | 330 | 0/+5 |
| RSM-3800-3300PG | 38 | 0/-0.016 | 330 | 0/+5 |
| RSM-4000-3300PG | 40 | 0/-0.016 | 330 | 0/+5 |
Unground Rod, Random Lengths (Metric Sizes 1mm to 40mm Diameter)
Type: RSM
Metric Sizes 1mm to 40mm Diameter
| ltem No. | OD | Tol. | L | Tol. |
| (mm) | (mm) | (mm) | (mm) | |
| RSM-0120-3300UG | 1.2 | +0.05/0.3 | 330 | 0/+5 |
| RSM-0170-3300UG | 1.7 | +0.05/0.3 | 330 | 0/+5 |
| RSM-0220-3300UG | 2.2 | +0.05/0.3 | 330 | 0/+5 |
| RSM-0320-3300UG | 3.2 | +0.05/0.3 | 330 | 0/+5 |
| RSM-0420-3300UG | 4.2 | +0.05/0.3 | 330 | 0/+5 |
| RSM-0520-3300UG | 5.2 | +0.05/0.3 | 330 | 0/+5 |
| RSM-0620-3300UG | 6.2 | +0.05/0.3 | 330 | 0/+5 |
| RSM-0720-3300UG | 7.2 | +0.05/0.3 | 330 | 0/+5 |
| RSM-0820-3300UG | 8.2 | +0.05/0.3 | 330 | 0/+5 |
| RSM-0920-3300UG | 9.2 | +0.05/0.3 | 330 | 0/+5 |
| RSM-1020-3300UG | 10.2 | +0.05/0.3 | 330 | 0/+5 |
| RSM-1120-3300UG | 11.2 | +0.05/0.3 | 330 | 0/+5 |
| RSM-1220-3300UG | 12.2 | +0.05/0.3 | 330 | 0/+5 |
| RSM-1320-3300UG | 13.2 | +0.05/0.3 | 330 | 0/+5 |
| RSM-1420-3300UG | 14.2 | +0.05/0.3 | 330 | 0/+5 |
| RSM-1520-3300UG | 15.2 | +0.05/0.3 | 330 | 0/+5 |
| RSM-1620-3300UG | 16.2 | +0.05/0.3 | 330 | 0/+5 |
| RSM-1720-3300UG | 17.2 | +0.05/+0.4 | 330 | 0/+5 |
| RSM-1820-3300UG | 18.2 | +0.05/+0.4 | 330 | 0/+5 |
| RSM-1920-3300UG | 19.2 | +0.05/+0.4 | 330 | 0/+5 |
| RSM-2020-3300UG | 20.2 | +0.05/+0.4 | 330 | 0/+5 |
| RSM-2120-3300UG | 21.2 | +0.05/+0.4 | 330 | 0/+5 |
| RSM-2220-3300UG | 22.2 | +0.05/+0.4 | 330 | 0/+5 |
| RSM-2320-3300UG | 23.2 | +0.05/+0.4 | 330 | 0/+5 |
| RSM-2420-3300UG | 24.2 | +0.05/+0.4 | 330 | 0/+5 |
| RSM-2520-3300UG | 25.2 | +0.05/+0.4 | 330 | 0/+5 |
| RSM-2620-3300UG | 26.2 | +0.05/+0.4 | 330 | 0/+5 |
| RSM-2720-3300UG | 27.2 | +0.05/+0.4 | 330 | 0/+5 |
| RSM-2820-3300UG | 28.2 | +0.05/+0.4 | 330 | 0/+5 |
| RSM-2920-3300UG | 29.2 | +0.05/+0.4 | 330 | 0/+5 |
| RSM-3020-3300UG | 30.2 | +0.05/+0.4 | 330 | 0/+5 |
| RSM-3220-3300UG | 32.2 | +0.05/+0.4 | 330 | 0/+5 |
| RSM-3420-3300UG | 34.2 | +0.05/+0.4 | 330 | 0/+5 |
| RSM-3620-3300UG | 36.2 | +0.05/+0.4 | 330 | 0/+5 |
| RSM-3820-3300UG | 38.2 | +0.05/+0.4 | 330 | 0/+5 |
| RSM-4020-3300UG | 40.2 | +0.05/+0.4 | 330 | 0/+5 |
