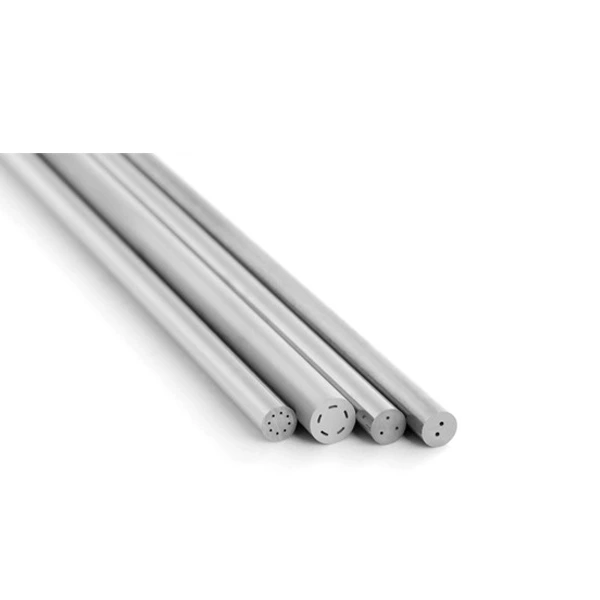

GARY CARBIDE’s rods with straight coolant holes are engineered for high-performance cutting applications, where cooling and chip removal are critical. These rods are ideal for deep drilling operations, helping to maintain cutting efficiency and prolonging tool life. Manufactured to the highest standards, they provide reliable and consistent performance in demanding environments.

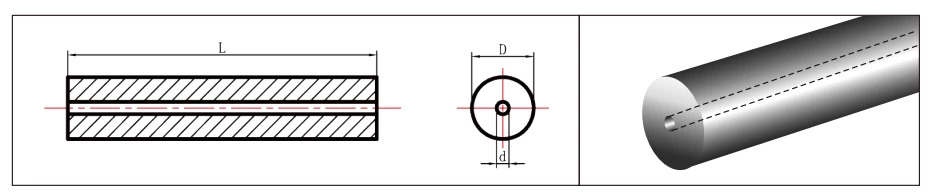

Precision Ground Rod, 1 Straight Hole Centered (Metric Sizes 4mm to 25mm Diameter h6 tolerance)
Type: R1SH
Metric Sizes 4mm to 25mm Diameter h6 tolerance
| ltem No. | OD | Tol. h6 | L | Tol. | d | Tol. |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| R1SH-0400-3300PG | 4 | 0/-0.008 | 330 | 0/+5 | 0.6 | ±0.15 |
| R1SH-0600-3300PG | 6 | 0/-0.008 | 330 | 0/+5 | 1 | ±0.15 |
| R1SH-0800-3300PG | 8 | 0/-0.009 | 330 | 0/+5 | 1.3 | ±0.15 |
| R1SH-1000-3300PG | 10 | 0/-0.009 | 330 | 0/+5 | 2 | ±0.20 |
| R1SH-1200-3300PG | 12 | 0/-0.011 | 330 | 0/+5 | 2 | ±0.20 |
| R1SH-1400-3300PG | 14 | 0/-0.011 | 330 | 0/+5 | 2 | ±0.20 |
| R1SH-1600-3300PG | 16 | 0/-0.011 | 330 | 0/+5 | 2 | ±0.20 |
| R1SH-1800-3300PG | 18 | 0/-0.011 | 330 | 0/+5 | 3 | ±0.20 |
| R1SH-2000-3300PG | 20 | 0/-0.013 | 330 | 0/+5 | 3 | ±0.20 |
| R1SH-2200-3300PG | 22 | 0/-0.013 | 330 | 0/+5 | 3 | ±0.20 |
| R1SH-2400-3300PG | 24 | 0/-0.013 | 330 | 0/+5 | 4 | ±0.30 |
| R1SH-2500-3300PG | 25 | 0/-0.013 | 330 | 0/+5 | 4 | ±0.30 |
Unground Rod, 1 Straight Hole Centered (Metric Sizes 4mm to 25mm Diameter)
Type: R1SH
Metric Sizes 4mm to 25mm Diameter
| ltem No. | OD | Tol. | L | Tol. | d | Tol. |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| R1SH-0430-3300UG | 4.3 | 0/+0.3 | 330 | 0/+5 | 0.6 | ±0.15 |
| R1SH-0630-3300UG | 6.3 | 0/+0.3 | 330 | 0/+5 | 1 | ±0.15 |
| R1SH-0830-3300UG | 8.3 | 0/+0.3 | 330 | 0/+5 | 1.3 | ±0.15 |
| R1SH-1030-3300UG | 10.3 | 0/+0.3 | 330 | 0/+5 | 2 | ±0.20 |
| R1SH-1230-3300UG | 12.3 | 0/+0.4 | 330 | 0/+5 | 2 | ±0.20 |
| R1SH-1430-3300UG | 14.3 | 0/+0.4 | 330 | 0/+5 | 2 | ±0.20 |
| R1SH-1630-3300UG | 16.3 | 0/+0.4 | 330 | 0/+5 | 2 | ±0.20 |
| R1SH-1830-3300UG | 18.3 | 0/+0.5 | 330 | 0/+5 | 3 | ±0.20 |
| R1SH-2030-3300UG | 20.3 | 0/+0.5 | 330 | 0/+5 | 3 | ±0.20 |
| R1SH-2230-3300UG | 22.3 | 0/+0.5 | 330 | 0/+5 | 3 | ±0.20 |
| R1SH-2430-3300UG | 24.3 | 0/+0.5 | 330 | 0/+5 | 4 | ±0.30 |
| R1SH-2530-3300UG | 25.3 | 0/+0.5 | 330 | 0/+5 | 4 | ±0.30 |
