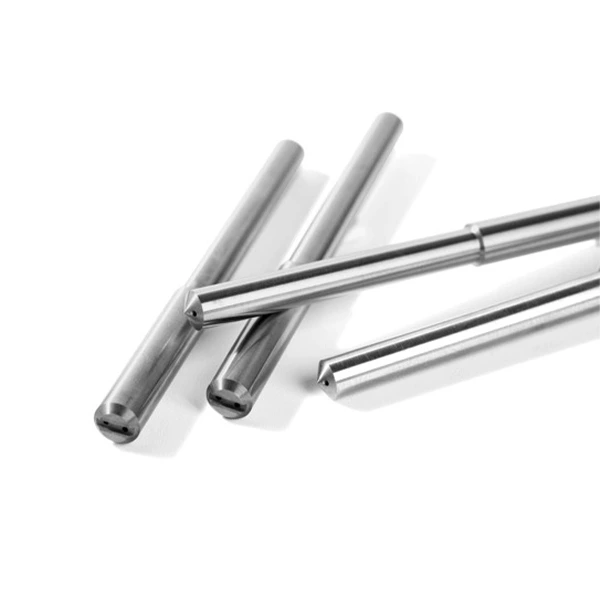

Our precision ground drill blanks are crafted to exacting standards, offering superior accuracy for the production of drills and other cutting tools. GARY CARBIDE's drill blanks are designed to meet the rigorous demands of high-precision machining, providing consistent dimensional accuracy and surface finish. These blanks are available in a range of sizes and geometries, ensuring reliability across various applications.

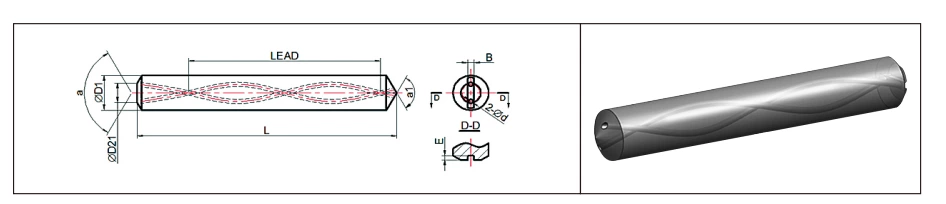

Precision Ground Rod, 3×Diameter Drill, 2 Helical Holes, With Point
Type: R2H03D3(30°)
Metric Sizes 6mm to 20mm Diameter
h6 tolerance
| Item No | OD | Tol.h6 | L | Tol. | TK | Tol. | d | Tol. | Pitch | |
| (mm) | (mm) | (mm ) | ( mm | (mm) | ( mm | ( mm) | (mm) | mm | ||
| R2H03D3-0600-0670PG | 6 | 0/-0.008 | 67 | 0/+1.5 | 2.40 | ±0.2 | 0.70 | ±0.05 | 32.7 | |
| R2H03D3-0800-0805PG | 8 | 0/-0009 | 80.5 | 0/+1.5 | 3.80 | ±0.2 | 1.00 | ±0.05 | 43.5 | |
| R2H03D3-1000-0905PG | 10 | 0/-0009 | 90.5 | 0/+1.5 | 4.50 | ±0.2 | 1.40 | ±005 | 54.4 | |
| R2H03D3-1200-1040PG | 12 | 0/-0.011 | 104 | 0/+1.5 | 5.85 | ±0.2 | 1.40 | ±0.075 | 65.0 | |
| R2H03D3-1400-1090PG | 14 | 0/-0.011 | 109 | 0/+1.5 | 6.70 | ±026 | 1.75 | ±0.075 | 76.2 | |
| R2H03D3-1600-1175PG | 16 | 0/-0.011 | 117.5 | 0/+1.5 | 7.90 | ±0.4 | 1.75 | ±0.075 | 87.1 | |
| R2H03D3-1800-1255PG | 18 | 0/-0011 | 125.5 | 0/+ 1.5 | 9.15 | ±0.4 | 2.00 | ±0 75 | 98.0 | |
| R2H03D3-2000-1340PG | 20 | 0/-0.013 | 134 | 0/+1.5 | 9.90 | ±0.50 | 2.00 | ±0.075 | 108.8 | |
Precision Ground Rod, 5×Diameter Drill, 2 Helical Holes, With Point
Type:R2H05D3(30)
Metric Sizes 6mm to 20mm Diameter
h6 tolerance
| Item No. | OD | Tol h6 | L | Tol. | TK | Tol. | d | Tol. | Pitch | ||
| (mm) | (mm) | mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |||
| R2H05D3-0600-0830PG | 6 | 0/-0.008 | 83 | 0/+15 | 2.40 | ±0.2 | 0.70 | ±0.05 | 32.7 | ||
| R2H05D3-0800-0925PG | 8 | 0/-0.009 | 92.5 | 0/+1.5 | 3.80 | ±0.2 | 1.00 | ±0.05 | 43.5 | ||
| R2H05D3-1000-1045PG | 10 | 0/-0.009 | 104.5 | 0/+1.5 | 4.50 | ±0.2 | 1.40 | ±0.05 | 54.4 | ||
| R2H05D3-1200-1200PG | 12 | 0/-0.011 | 120 | 0/+1.5 | 5.85 | ±0.2 | 1.40 | ±0.075 | 65.0 | ||
| R2H05D3-1400-1265PG | 14 | 0/-0.011 | 126.5 | 0/+1.5 | 6.70 | ±0.26 | 1.75 | ±0075 | 76.2 | ||
| R2H05D3-1600-1355PG | 16 | 0/-0.011 | 135.5 | 0/+1.5 | 7.90 | ±0.4 | 1.75 | ±0.075 | 87.1 | ||
| R2H05D3-1800-1455PG | 18 | 0/-0.011 | 1455 | 0/+1.5 | 9.15 | ±0.4 | 2.00 | ±0.075 | 98.0 | ||
| R2H05D3-2000-1560PG | 20 | 0/-0.013 | 156 | 0/+1.5 | 9.90 | ±0.50 | 2.00 | ±0.075 | 108.8 | ||
